Interior decorative lighting for homes, hotels, theaters, clubs and entertainment spaces
Product overview
What this cable is designed to do

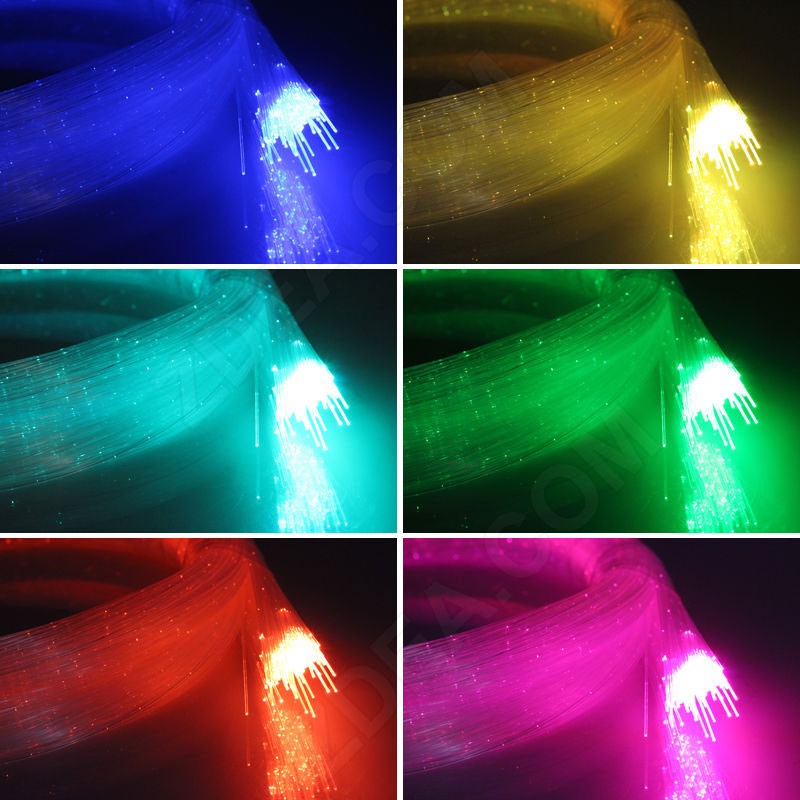

Dotting modifies the fiber surface so part of the transmitted light becomes visible along the run while the cable still carries light toward the end. Standard dot spacing is 2 cm, and custom spacing can be discussed for the intended visual rhythm.
Selection notes
- Standard dot spacing is 2 cm.
- Custom dot spacing can be discussed for different visual effects.
- Test the proposed run length and illuminator with the final dot pattern.
Standard product range
Technical specifications
Use the table below to compare available models and dimensions. Send your required cable type, size, length, quantity and application to Zdea for order confirmation.

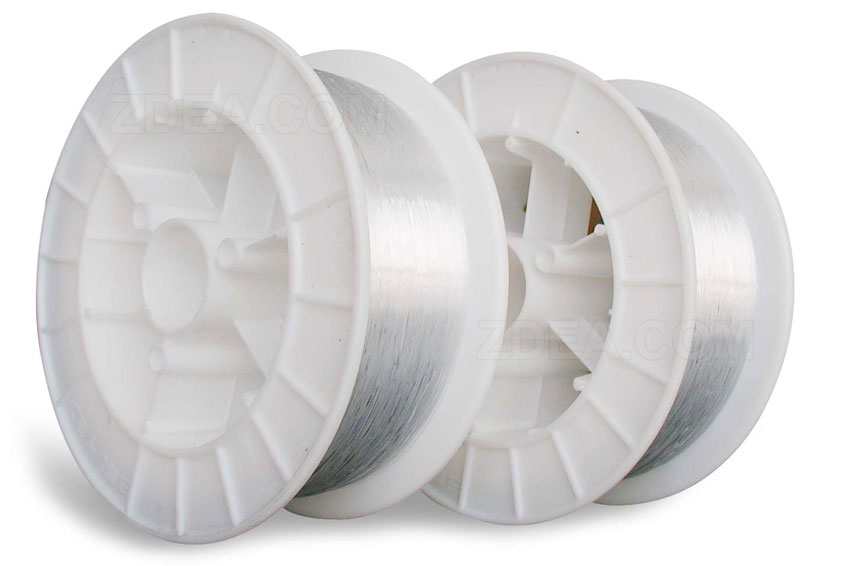

| Product code | Fiber dia. (mm) | Attenuation (dB/km) | Operating temp. (°C) | Roll length (m) |
|---|---|---|---|---|
| Z250-D | 0.25 | ≤350 | -50 to +70 | 12000 |
| Z500-D | 0.5 | ≤300 | -50 to +70 | 6000 |
| Z750-D | 0.75 | ≤250 | -50 to +70 | 2700 |
| Z1000-D | 1 | ≤250 | -50 to +70 | 1500 |
| Z1500-D | 1.5 | ≤250 | -50 to +70 | 700 |
| Z2000-D | 2 | ≤250 | -50 to +70 | 350 |
| Z2500-D | 2.5 | ≤250 | -50 to +70 | 200 |
| Z3000-D | 3 | ≤250 | -50 to +70 | 150 |
Typical applications
Where this fiber optic light cable is used
Signage, display lighting and architectural accents
Museums, exhibitions and star-field ceilings
Landscape and selected outdoor lighting projects
Product questions
End Glow Fiber Optic Cable with Dotting FAQ
What does dotting do to end glow fiber?+
Small processed points release some transmitted light along the fiber, adding visible highlights to the run.
What is the standard dot spacing?+
The standard product range uses 2 cm dot spacing.
Can the dot spacing be customized?+
Yes. Zdea can discuss a custom dot interval according to the required lighting effect.
