Interior decorative lighting for homes, hotels, theaters, clubs and entertainment spaces
Product overview
What this cable is designed to do

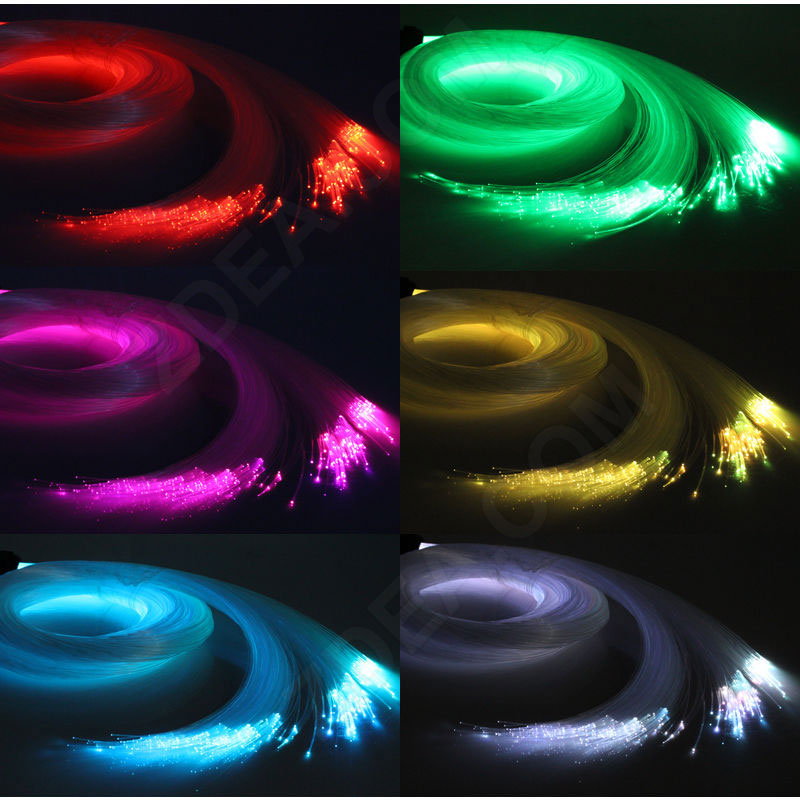

Basic end glow cable delivers light from the illuminator to the polished fiber end. Because electrical power and the main light source remain remote from the illuminated point, it is suited to detailed lighting patterns where small, cool points of light are needed.
Selection notes
- Choose smaller diameters for dense star fields and fine points.
- Choose larger diameters when a brighter, more visible end point is required.
- Confirm bundle size, run length and illuminator capacity before ordering.

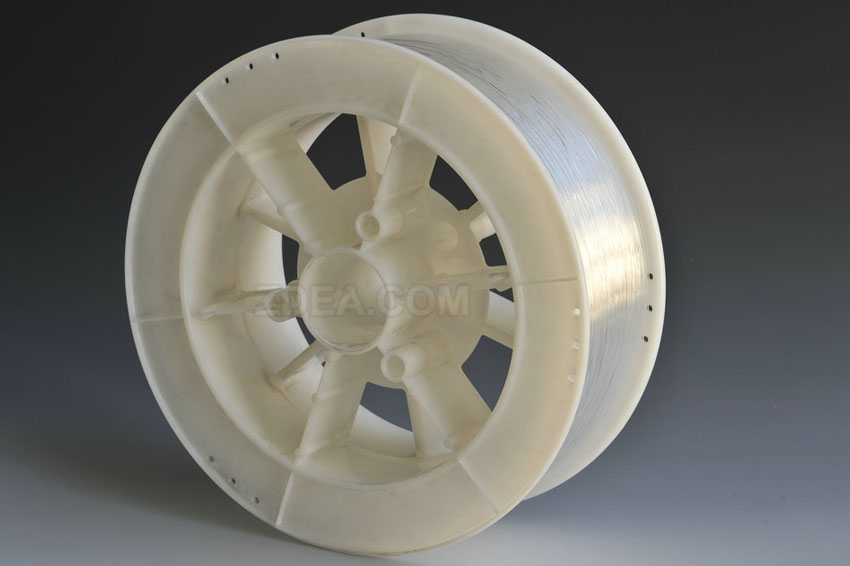

Standard product range
Technical specifications
Use the table below to compare available models and dimensions. Send your required cable type, size, length, quantity and application to Zdea for order confirmation.
| Product code | Fiber dia. (mm) | Attenuation (dB/km) | Operating temp. (°C) | Roll length (m) |
|---|---|---|---|---|
| Z250 | 0.25 | ≤350 | -50 to +70 | 12000 |
| Z500 | 0.5 | ≤300 | -50 to +70 | 6000 |
| Z750 | 0.75 | ≤250 | -50 to +70 | 2700 |
| Z1000 | 1 | ≤250 | -50 to +70 | 1500 |
| Z1500 | 1.5 | ≤250 | -50 to +70 | 700 |
| Z2000 | 2 | ≤250 | -50 to +70 | 350 |
| Z2500 | 2.5 | ≤250 | -50 to +70 | 200 |
| Z3000 | 3 | ≤250 | -50 to +70 | 150 |
Typical applications
Where this fiber optic light cable is used
Signage, display lighting and architectural accents
Museums, exhibitions and star-field ceilings
Landscape and selected outdoor lighting projects
Product questions
End Glow Fiber Optic Lighting Cable FAQ
What is end glow fiber optic cable?+
End glow cable carries light along the fiber and emits most of the visible light at the cut end, creating a controlled point of illumination.
Can the fiber diameter and length be customized?+
Zdea can discuss diameter, length, bundle and related processing requirements for OEM and ODM orders.
Does electricity run through the PMMA fiber?+
No. The fiber carries light rather than electrical current; the illuminator is installed separately.
