Product overview
What this cable is designed to do

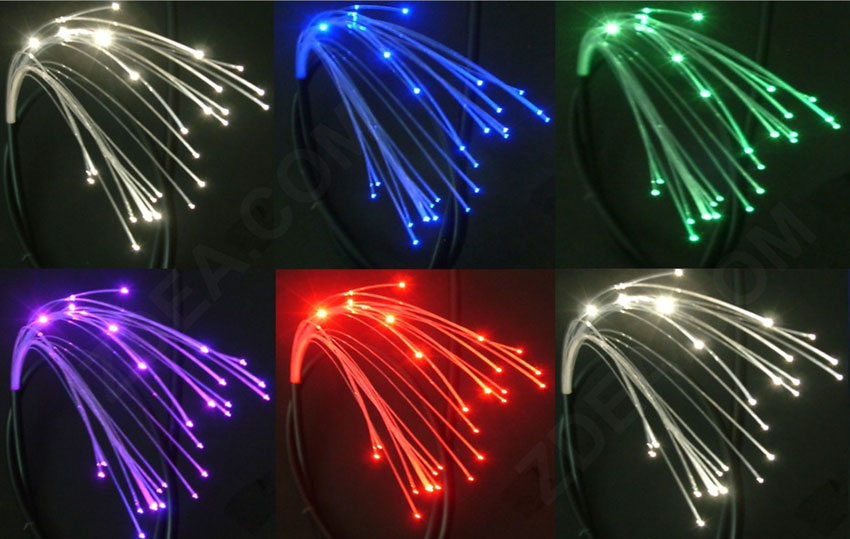

Multicore cable groups several optical fibers into one protected construction. It can simplify installation when a project needs a bundled light output or multiple fibers routed together from the illuminator to the display or fitting.
Selection notes
- Select the core count according to the required output and fitting.
- Transparent and black jacket constructions serve different visual-routing needs.
- Confirm bend routing, connector size and illuminator interface for the assembled cable.
Standard product range
Technical specifications
Use the table below to compare available models and dimensions. Send your required cable type, size, length, quantity and application to Zdea for order confirmation.
| Product code | Fiber construction (mm) | Attenuation (dB/km) | Jacket | Operating temp. (°C) | Roll length (m) |
|---|---|---|---|---|---|
| Z750-3 | 0.75 × 3 | ≤230 | Transparent PVC | -50 to +70 | 900 |
| Z1000-3 | 1.0 × 3 | ≤230 | Transparent PVC | -50 to +70 | 500 |
| Z750-7 | 0.75 × 7 | ≤230 | Black PVC | -50 to +70 | 100 |
| Z750-12 | 0.75 × 12 | ≤230 | Black PVC | -50 to +70 | 100 |
| Z750-14 | 0.75 × 14 | ≤230 | Black PVC | -50 to +70 | 100 |
| Z750-18 | 0.75 × 18 | ≤230 | Black PVC | -50 to +70 | 100 |
| Z750-20 | 0.75 × 20 | ≤230 | Black PVC | -50 to +70 | 100 |
| Z750-25 | 0.75 × 25 | ≤230 | Black PVC | -50 to +70 | 100 |
| Z750-30 | 0.75 × 30 | ≤230 | Black PVC | -50 to +70 | 100 |
| Z750-42 | 0.75 × 42 | ≤230 | Black PVC | -50 to +70 | 100 |
| Z750-50 | 0.75 × 50 | ≤230 | Black PVC | -50 to +70 | 100 |
| Z750-75 | 0.75 × 75 | ≤230 | Black PVC | -50 to +70 | 100 |
Typical applications
Where this fiber optic light cable is used
Signage, display lighting and architectural accents
Museums, exhibitions and star-field ceilings
Landscape and selected outdoor lighting projects
Product questions
End Glow Multicore Fiber Optic Cable FAQ
What is a multicore fiber optic lighting cable?+
It combines multiple PMMA optical fibers inside one jacket so the group can be routed and terminated as one cable.
Which standard core counts are available?+
Standard constructions range from 3 cores to 75 cores.
Can multicore constructions be customized?+
OEM and ODM construction requirements can be reviewed with the Zdea sales team.
